“The ZTU series is setting new standards with its ripple current and capacitance specs and reliably guarantees circuit safety at one of the highest temperature ranges currently available on the market,” says Hirofumi Maruyamafrom Panasonic Industry Europe.

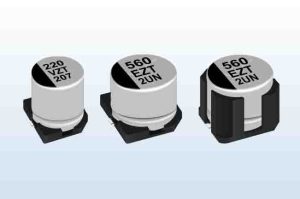

Available with a rated voltage 25V~35VDC / 220 560 µF and a significant increase of 80% in ripple current capability in comparison to the ZC series, the ZTU has been proven for 4000 hours at 125°C & 135°C and thus would be the ideal choice where high temperature tolerance and high current capability is being demanded by the application.
This is highly relevant for a wide range of applications, as Maruyama summarizes: “As well as many others, it reliably qualifies for being applied in DC/DC or AC/DC inverters, robotics, rectifier circuits – and in particular for automotive applications where conditions turn out to be exceptionally severe”.
Panasonic Industry also offers a vibration-proof version of ZTU capacitors in both 8mm and 10mm diameter versions.
These are able to handle shocks of up to 30G, while the standard parts also have a vibration tolerance of 10G.
For further information on the new ZTU series capacitors, go to the Panasonic Industry Product Finder
